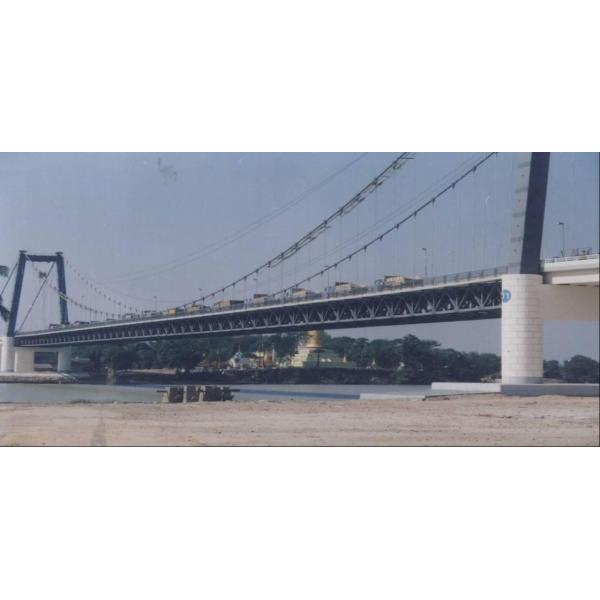

Permanent Deck Steel Cable Suspension Bridge With Steel Truss
Suspension Bridges are used for the longest spans across river estuaries where
intermediate piers are not feasible, the cables form catenaries
supporting both sides of the deck and are tied to the ground
usually by gravity foundations sometimes combined with rock
anchors. They are less suitable for heavy loading such as railway
traffic, especially for short spans.
The surface protection can be paint or hot-dip galvanized.
Bridge load capacity, width can be designed according to user's
1. High strength and big stiffness , relative to the concrete
bridge can be reduced trabecular high and self-respect
2. Due to the steel isotropic, quality of a material is uniform and
modulus of elasticity, that make steel bridge in the working
condition and calculation compared with the assumption
3. Steel bridge generally USES factory, site splicing, the
construction period is short, processing convenient and not
affected by seasonal effect.
4. Steel bridge is suitable for industrialized manufacture and very
convenient to transport.
5. Steel bridge is easy to repair and replace,long
lifetime,material can be recycled.
Beam bridge,arch bridge,rigid frame bridge,cable-stayed
bridge,suspension bridge. passenger foot-bridge
Mixture form to erect all kinds of
Temporary Bridges, Emergency Bridges and Fixed Bridges.
Using the bridge equipment, the suspension bridges of varied span
can be erected.
The bridge has the advantages of few components, light weight and
Bailey Bridge requires no special tools or heavy equipment for
construction, the bridge elements
are small enough to be carried in , and the bridge is strong enough
to carry . It is considered a great example of military
Heavy loading capacity
Used as permanent bridge
Long service life
